Four-color overlapping type synchronous belt high speed printing machine

Four-color overlapping type synchronous belt high speed printing machine

1  The machine use synchronous bell working, low noise,And it can usefully control the machine on and off speed change, setting the color be accurate.

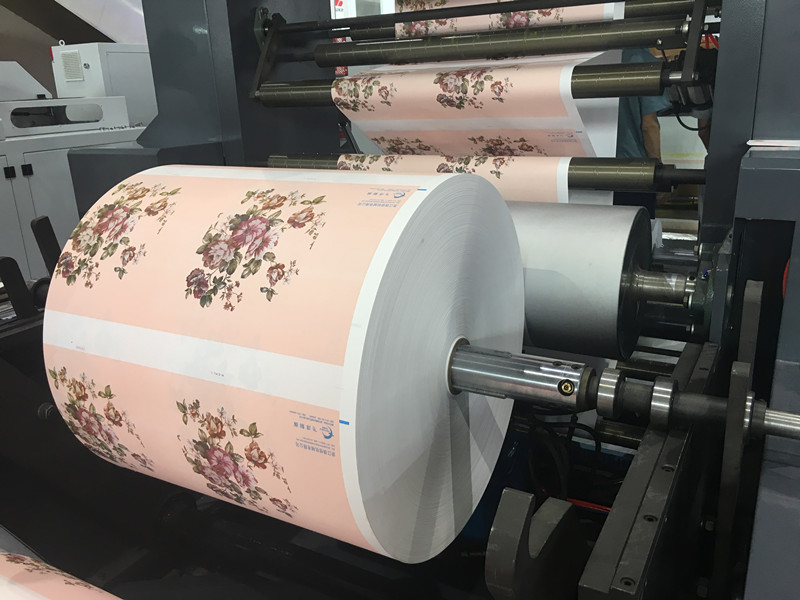

2  Machine rewinder is hydraulic and pneumatic control, and with friction winder,Make the material more tight and more smooth.
3  Machine unwinder is with EPC and hydraulic,no need lift the material by manual.
4  Machine is use hydraulic up and down. printing gear
is helical gear,
5  Machine is controlled by inverter.
6  Machine speed:120meter/min. Printing speed:8-100meters /min.

7  The machine will automatic alrm before the machine start.

Max.Width  of Substrate	600	800	1000
Max.Printing Width (mm)	560	760	960
Printing  materials	20-350g  paper and film	20-350g  paper and film	20-350g  paper and film
Printing  Speed(m/min)	120m/min	120m/min	120m/min
Plate  thickness	1.7-3.4	1.7-3.4	1.7-3.4
Weight of  machine	4000	4500	5000
Machine  size	5.3×1.8×2.6m	5.3×2×2.6m	5.3×2.2×2.6m
