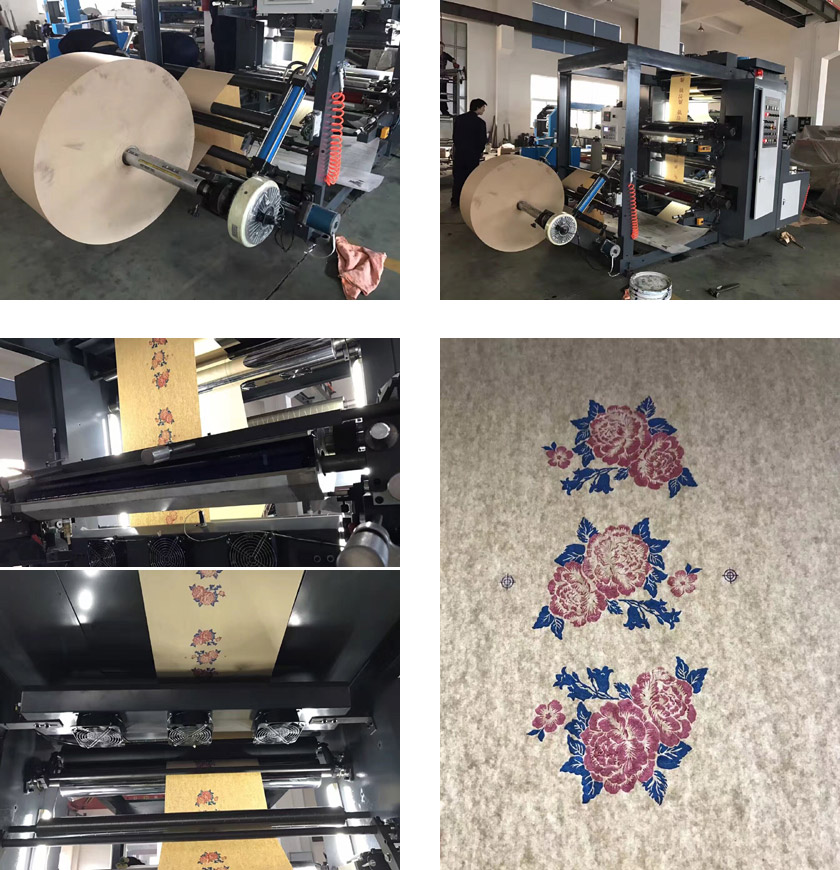

Six-color overlapping type synchronous belt high speed printing machine

Six-color overlapping type synchronous belt high speed printing machine

Flexographic printing machine,  also called aniline press which uses photosensitive resin plate as the  printing plate of printing machine. It adopts environmental ink and has  advantage of low edition-producing cost , this is an ideal machine for  mass lots , large variety production manufacturer It is also suitable  for printing HDPE, LDPE, paper, rolling paper etc.

PARAMETERS AND MAIN PARTS Introduction

Max.Width of Substrate	600	800	800
Max.Pringting Width(mm)	560	760	760
Printing materials	20-350g paper and film
Printing Speed(n/min）	120m/min	120m/min	120m/min
Plate thickness	1.7-3.4	1.7-3.4	1.7-3.4
Weight of machine	5000	5500	6000
Machine size	5.4*1.8*2.9m	5.4*2*2.9m	5.4*2*2.9m

1- The machine use synchronous belt working,low noise,And it can usefully control the machine on and off speed change, setting the color be accurate.

2- Machine rewinder is hydraulic and pneumatic control,and with friction winder,Make the material more tight and more smooth.

3- Machine unwinder is with EPC and hydraulic,no need lift the material by manual.

4- Machine is use hydraulic up and down,printing gear is helical gear.

5- Machine is controlled by inverter.

6- Machine speed:120meter/min.Printing speed: 8-100meters /min.

7- The machine will automatic alrm before the machine start.
