CY180 Automatic Square Bottom Paper Bag Making Machine

CY180 Automatic Square Bottom Paper Bag Making Machine

    CY180 Automatic Square Bottom Paper Bag Making Machine
Inquiry
Detailed description

CY180 Automatic Square Bottom Paper Bag Making Machine

PRODUCT INFORMATION

Automatic Square Bottom Paper Bag Making Machine can produce the square bottom paper bag in conjunction with overseas advanced technology.The machine has many advantages such as high speed ,high productive effciency and wide-range adjustment. Automatic raw material feeding,automatic errors correct system and tension control,all these operational procedures are controlled by PLC.This is ideal equipment for producing varies kinds of paper bags such as food paper bags ; cosmetics handle paper bags.ect .


Automatic square bottom  paper bag making machine Characteristics :

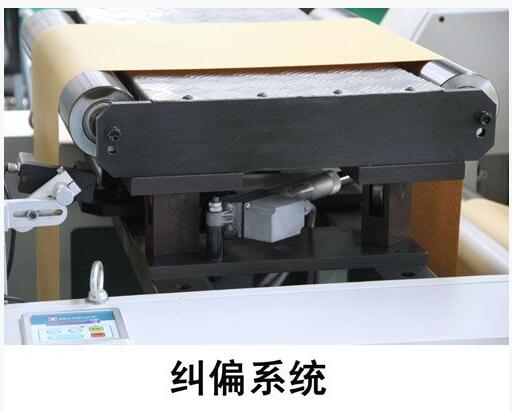

1.Equipped with servo system with photocell for correction,tracking the printed material accuracy .
2.The electric control system promotes high speed,high precision motion control and production line.It detects automatically effect of integration and optical fiber .

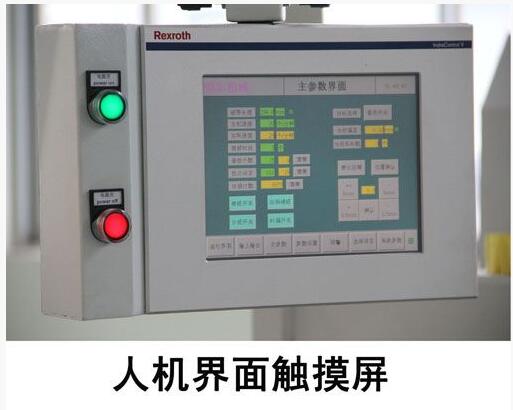

3.The touch screen display simplifies machine operation.

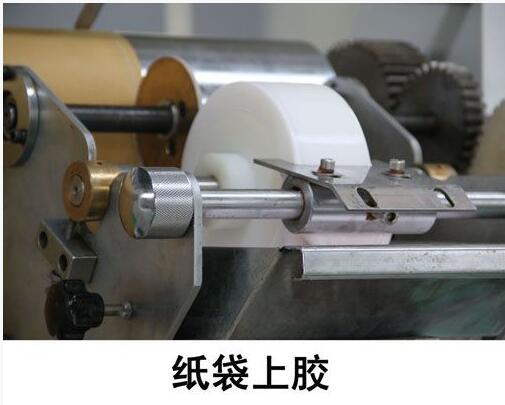

4.The glue applicator system helos glue to move automatically as machine running .
5. Automatic fault detector and self diagnosis system reduce the chance to damage machine

square bottom food paper bag making machine Specification:

Model

CY-180

Paper bag width

80-190mm

Bag bottom size

Tube length

45-100mm

191-371mm

Max roll paper width Machine speed

600mm

200pcs/min

Paper thickness

Diameter of material

45-120gsm

1,300mm

Main motor

Air pressure

15KVA

690KPA

Machine weight

Machine size(WxLxH)

5000kg

1600x9200x 1750mm
